CH-HPC2-1WD

The CH-HPC2-1WD white caravan camera is part of our range of premium hybrid cameras  which combine standard definition video and AHD video and can be programmed to suit the application as required making these the choice of professionals as a single camera can be used in many different applications.

The Series 2 HYBRID range of cameras brings all of the features of our original, groundbreaking range with easier programming and new features.
All cameras are all 1080P AHD by default and can be changed to other HD formats; TVI, CVI in 1080P and 720P variations + CVBS Standard Definition in PAL or NTSC. The original series 1 hybrid cameras were 720P AHD by default with CVBS available.
The programming is still done using a joystick on the cable but this is not compatible with the series 1 cameras and vice versa. All programming is now menu based so having a test screen is very important and we recommend using one of the battery powered CCTV Testers that we stock so that this can be done easily, even after installation.

Features

• Programmable video output mode: HD or Standard Definition
• Programmable CVBS TV format: PAL or NTSC
• 2MP camera resolution in HD mode 1960 x 1080 pixels for 1080P output
• 700TVL CVBS resolution
• Custom camera programming is possible including Mirror to Real image change
• Standard Chipatronic 4 Pin cabling solutions are able to be used

The CH-HPC2-1WD looks the same as the older model CH-HPC1WD and the CH-HPC1BD which has a black housing with both colour cameras are available in a standard, wide angle lens version and a narrow angle lens version which is used for constant rear view and provides a better view of the road and the traffic as this will generally be further behind.

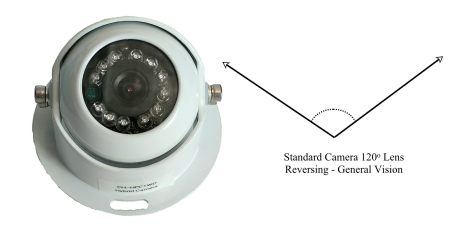

This version is suitable for general purpose and reversing.

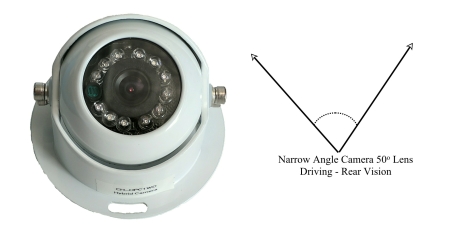

The narrow lens version is designed for constant viewing where a clearer view of the road and traffic behind is desired.

The camera comprises the main housing which mounts onto the body and then the camera section is held in place by screws. By loosening the screws the camera can be moved up and down inside the housing to align the view required.
