CH-AHDVR4-S2

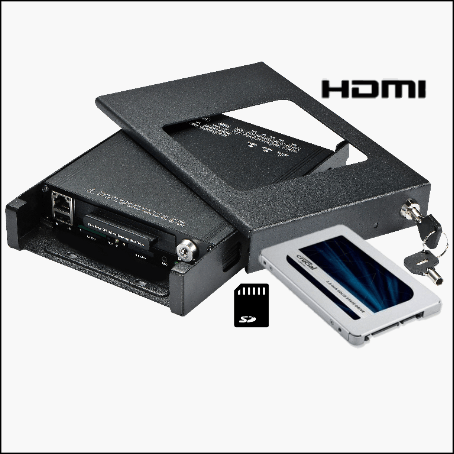

The CH-AHDVR4-S2 MDVR is designed for use in commercial and industrial vehicles where constant recording from 1 to 4 cameras are required with HD video files saved to an onboard hard drive. The main DVR host has all the electrical connections and cable connections to the cameras and is housed in a metal, tamperproof enclosure with 2 key access, one for the outer enclosure which then provides access to the host itself and at this point only the SD Card can be removed. The second key also controls the main power to the DVR and also allows the hard drive to be removed and for this reason key control can be related to the level of access allowed with only approved personnel having the full access but still allowing limited access for maintenance and emergency files from the SD Card.

These are in the same form factor and all our latest hard drive systems and normally uses a 1TB SSD but can support up to 6TB SSD drives plus SD Card up to 512GB with dual recording to both media  available. This enables recent files to be accessed from the SD card rather than removing the hard drive which can be simpler and also allows a higher level of security.
Depending on the final setup the hard drive can store several hundred hours of video meaning that recordings for weeks or even months ago can be retrieved before they are recorded over. If file retention is a major factor in the system requirements, our systems can be set so the files are not recorded over but this would mean that the hard drive will need to be changed when it reaches capacity so spare drives would be required.

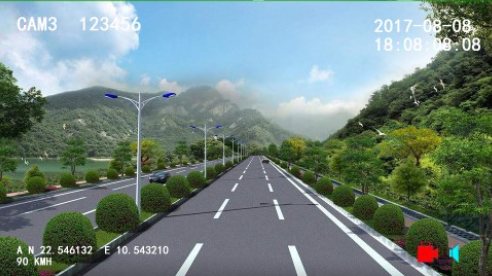

Our DVRs record the Time, Date and if available, the vehicle ID or registration and by adding an optional GPS module will also save the GPS coordinates with speed also able to be recorded. This data is embedded into every file so is always visible when watching the video but can also be set so that this is not shown in the video but will still be recorded.
A correctly configured system will meet the compliance requirements for WA crash towing dashcam recording and can exceed the basic requirements to provide additional benefits.

Video output via either HDMI or CVBS is standard allowing the use of newer display technologies and customised programming to provide switchable views on an in-cab monitor which allows a rear facing camera to be setup as a normal reversing camera.

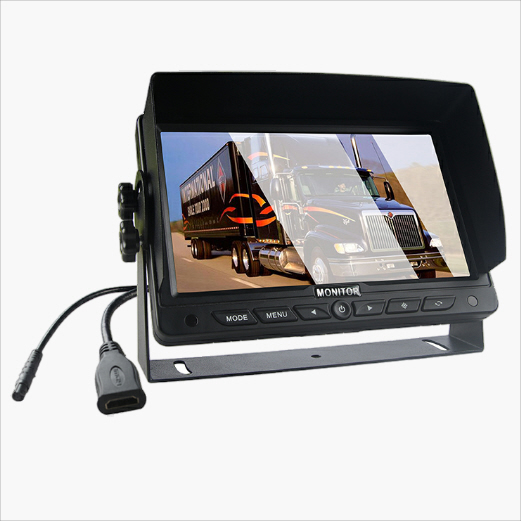

HDMI monitors are used as these provide far clearer video images from the DVR and these are available in 7″ and 10.1″ LCD sizes.

These are analogue input systems using either high definition AHD cameras or standard CVBS cameras although for full HD, higher resolution video files AHD cameras should be used as the systems can record at up to 1080P Full HD or 720P HD based on the cameras used. Note that CVBS camera will record at D1 only.

Our unique system provides a choice of file formats for the video with either AVI or MP4 video file formats able to be used enabling a wider choice of viewing and editing software to be used  although MP4 can only be used in particular setups(not with dual recording).

If a recorded notification of some function is required and a switched input can be linked to the function (door switch, external lights switch etc.) we can set the system up to show this as an on-screen notification which is embedded into the video which allows confirmation that the function was active when the video is reviewed. This can be very important where the DVR files are being used as part of a compliance process or for staff evaluations to confirm that processes are being followed as the notification is only shown while the input is active and can be checked against the time stamp also embedded into the video files.

Where an optional GPS module is fitted, the location coordinates and the vehicle speed will be embedded into the video records which is a requirement for certain types of heavy transport in some states in Australia.

The CH-AHDVR4-S2 is the current base level model in the 4 channel range and allows only localised access to the video files, usually directly from the onboard storage which is typically a removable Solid State Drive (SSD) and/or SD card, both of which needs to be connected to a computer for review but as having direct access to the hard drive or SD Card is not always possible, an MDVR with wireless access may solve the problem.

The CH-AHDVR4NS-4G model allows live access via a browser or through a dedicated app via a cloud server platform using the 4G mobile network. Live streaming of video, remote download of saved files, streaming of previously saved videos, vehicle location on map and file download (PC only) are all available with visibility of all vehicles in the fleet which are connected to the system.


Viewing of video, map location and vehicle details are also available using a Smartphone app.

The CH-AHDVR4NS-4G is a mobile network connected device which can be connected to any Australian mobile data network using a data SIM and if required, Chipatronic can provide the SIM and service with data plan to access a national network or customers can provide their own SIM/service through existing providers.

In general high volume data plans are not required unless regular download of video is being carried out or extensive streaming of live video and the main use of this will be to access video files required as part of a compliance process, staff evaluation or incident investigation. All files which are remotely downloaded will remain on the hard drive in the normal manner until the standard video looping functionality deletes these when the drive is reaching maximum capacity to allow new files to be recorded and this will mainly depend on the drive capacity and the amount of time the vehicle is operating.
Usage of mobile data is the responsibility of the business and access to systems which may result in mobile data through file downloads or video streaming should be limited to users with sufficient training and knowledge of the implications.

The CH-AHDVR-W is a Wi-Fi enabled device which has 2 modes; Access Point for device to device connection so using a smartphone or tablet you would connect to a Wi-Fi network generated by the DVR using a browser with the default device IP address or operating as a Client on an existing WLAN at the workplace the DVR can be accessed directly via DHCP allocated IP address and a browser or through the CMS cloud platform using browser or dedicated app.
Please note that this is a special order only.

The CH-AHDVR4S-4GW combines both Wi-Fi and 4G and the DVR will connect through Wi-Fi where a recognised WLAN is available or 4G elsewhere (providing the required mobile network is available) but please note this model is a special order only.

Please note that WLAN access requires the involvement of your IT team and they should be consulted prior to any deployment.

For information on which of these options should best suit your business, please contact our sales team.

As all of our MDVR systems are customised to suit, we recommend that you contact us with as much information as you can on your particular requirements and we will provide a full quote for the complete system.
